Design Example: Ti375 N1156 Development Kit Design

Efinix preloads the Titanium Ti375 N1156 Development Board with an example design that demonstrates the following functions:

• Sets up a PCIe link between a host system with a general-purpose CPU as the PCIe root port, and the Titanium Ti375 N1156 Development Kit as the PCIe end point.
• Simple read operation to send data from the end point to the host.
• Simple write operation to send data from the end point to the host.

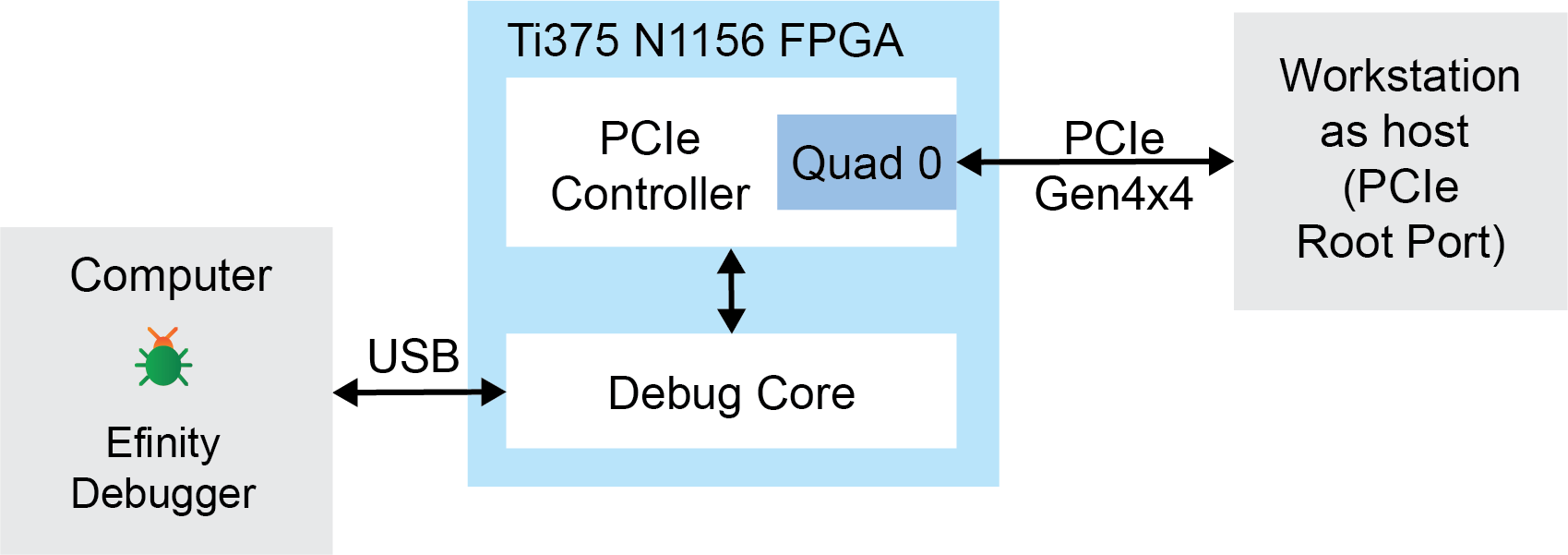

Example Design Block Diagram Overview
