The JTAG SPI Flash Loader core provides access to the SPI flash memory using a computer connected to your board via a JTAG header. You can perform various operations such as, erase, write and read data to/from the flash, verify the image, and specify the starting address, number of bytes.

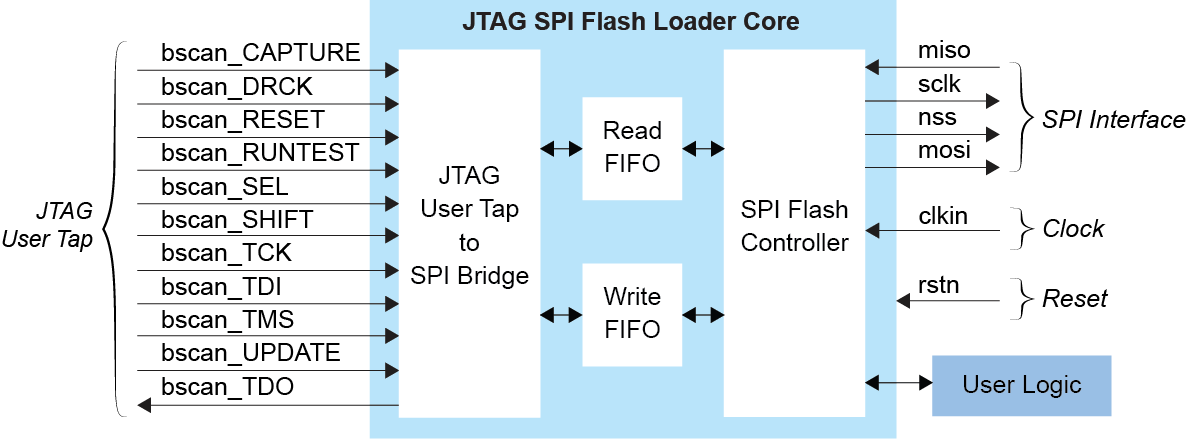

JTAG SPI Flash Loader Block Diagram

Features

• Bridges the JTAG and SPI interfaces
• Supports up to 1000 write and read burst of 256 bytes of data
• Verilog RTL
• Includes an example design targeting the Trion® T20 BGA256 Development Board and Titanium Ti60 F225 Development Board
• Supports all Trion and Titanium FPGAs
