Trion T8 Development Kit

Efinix provides the Trion T8 BGA81 development kit, which is based on the T8 FPGA, so you can explore the features of this first member of the Trion platform. The Trion T8 BGA81 development kit includes a Trion T8 BGA81 development board, a USB cable, four standoffs, and four screws. Learn more about Trion FPGAs

With the development kit, you get a license for the Efinity® software with 1 year of upgrades. The Efinity software provides a complete tool flow from RTL design to bitstream generation, including synthesis, place-and-route, and timing analysis.

Features

  • Compact design
  • T8 FPGA in 81-ball FBGA package
  • 5 user LEDs
  • 2 user pushbutton switches
  • Type B mini-USB port
  • Atmel microcontroller to facilitate T8 configuration
  • 3 I/O headers to connect to external devices
  • 33.333 MHz oscillator

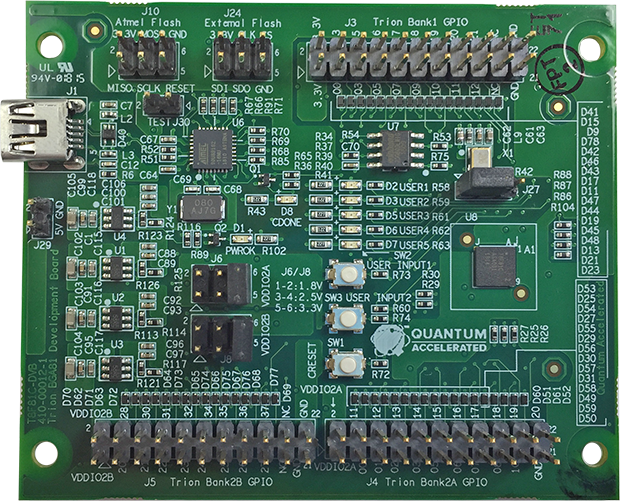

Trion T8 BGA81 Board

T8 BGA81 board


Trion T8 BGA81 Board Block Diagram

T8 board block diagram

Video Tutorial

You can download the design files and documentation from the Support Center.

What's in the box

  • Trion T8 BGA81 development board preloaded with a demonstration design
  • Mini-USB cable
  • 4 standoffs and 4 screws

Documentation

Trion T8 BGA81 Development Kit Overview

Trion T8 BGA81 Development Board User Guide

Trion T8 BGA81 Development Board Schematics and BOM
