Development Kits



Get Started with a Kit

Our development kits help you get started designing with Efinix FPGAs quickly. With each kit you also receive a license for the Efinity® software. Efinix also provides some daughter cards separately, in case you would like to use more cards than are included in a kit.

Titanium Ti375 N1156 Development Kit

Titanium Ti375 N1156 Development Kit

This development kit lets you explore the capabilities of the Ti375 FPGA’s full-duplex transceivers, which support multiple protocols including PCIe® Gen4 with data rates up to 16 Gbps, Ethernet 10GBase-KR, and Ethernet SGMII.

View product page

Ti375 PCIe EA board

Titanium Ti375 PCIe® Early Access Board

This early access board is our first board featuring the Ti375 FPGA and PCIe Gen4x4 operation. You will see the Ti375 PCIe transceivers in action, and get a sneak peek at the capabilities of the Ti375 FPGA.

View product page

Titanium Ti375 C529 Development Kit

Titanium Ti375 C529 Development Kit

This development kit lets you explore the capabilities of the Ti375 FPGA’s hardened quad-core RISC-V processor, which can operate at clock frequencies up to 1 Gbps.

View product page

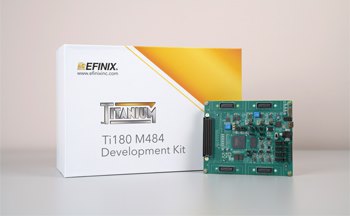

Titanium Ti180 M484 Development Kit

Titanium Ti180 J484 Development Kit

This kit showcases the Ti180 FPGAs’s hardened MIPI D-PHY, supporting up to 2.5 Gbps per lane, and hardened LPDDR4x controllers.

View product page

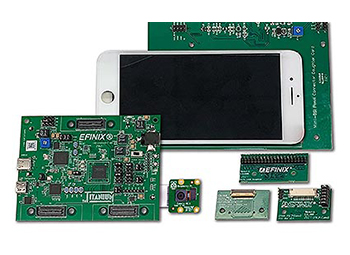

Titanium Ti60 F225 Development Kit

Titanium Ti60 F225 Development Kit

Everything you need to prototype vision systems, including a Ti60 FPGA, Raspberry Pi camera, and DSI display.

View product page

Kits for MIPI CSI-2

Some of our Trion FPGAs have hardened MIPI CSI-2 blocks that offer great camera sensor interfacing plus enough logic for image processing. A hardened DDR DRAM memory controller can interface to a frame buffer or some other system memory. Our MIPI CSI-2 based development kits connect to Raspberry Pi and other cameras so you can prototype vision applications easily.

Trion T120 BGA576 Development Kit

Trion T120 BGA576 Development Kit

This T120 kit features the BGA576 package and has more I/O, LPDDR3 memory, user inputs and PMOD connectors, giving you the features you need to prototype a complete system.

View product page

Trion T120 BGA324 Development Kit

Trion T120 BGA324 Development Kit

Prototype designs that use the T120 FPGAs MIPI CSI-2 and DDR DRAM controllers. Process video and send it to a display with the HDMI connector and use the PMOD connectors to attach custom peripherals.

View product page

Trion T20 MIPI Development Kit

Trion T20 MIPI Development Kit

Starter MIPI CSI-2 development kit with a T20 FPGA. The kit comes with 3 daughter cards that let you connect to MIPI cameras or other external devices, as well as extend the GPIO.

View product page

I/O Expansion Kits

Our I/O expansion kits give access to I/Os through the connectors and headers on the board. These boards also have LEDs and switches as well as one more more on-board clock oscillators. You can connect to other boards via the headers and connectors, or use it stand-alone to prove out your processing function.

Trion T20 BGA256 Development Kit

Trion T20 BGA256 Development Kit

I/O breakout board featuring the T20 BGA256 FPGA.

View product page

Trion T8 BGA81 Development Kit

Trion T8 BGA81 Development Kit

Starter board featuring the T8 BGA81 FPGA.

View product page

Kits for Makers

For makers and hobbyists, we provide the Xyloni development kit, which is a small form factor, thumb-type board featuring a T8 FPGA. It includes pin headers that you can solder onto the board or use with a breadboard. Additionally, to support the open-source community, Xyloni designs, including our Opal RISC-V SoC, are available on GitHub.

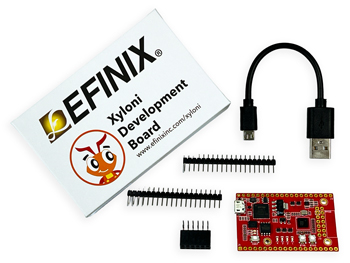

Xyloni Development Kit

Xyloni Development Kit

Thumb-sized USB board for hobbyists and makers.

View product page

FireAnt Board

FireAnt T8 Development Board

Thumb-sized USB board with T8 FPGA from our partner Jungle Electronics.

View product page

Daughter Cards

Most Efinix development kits include daughter cards that provide additional functionality, such as connecting to cameras. You may want additional daughter cards, for example to protoype designs with multiple cameras. The following daughter cards are available for purchase on Digikey.

MIPI and LVDS Expansion Daughter Card

MIPI and LVDS Expansion Daughter Card

Part number: EFX_DC_GPIO_B

The MIPI and LVDS Expansion Daughter Card converts the signals from the development board's QSE connector.

User Guide Schematics and BOM Digikey

Dual MIPI to DSI Converter Daughter Card

Dual MIPI to DSI Converter Daughter Card

Part number: EFINIX_TI60_2X30_IFB

The Dual MIPI to DSI Converter Daughter Card converts the MIPI signals from the development board to a DSI interface for the Mini-DSI Panel Connector Daughter Card.

User Guide Schematics and BOM Digikey

Raspberry Pi Camera Connector Daughter Card

Raspberry Pi Camera Connector Daughter Card

Part number: EFX_DC_CAM_FPC15_B

The Raspberry Pi Camera Connector Daughter Card bridges between the development board and a Raspberry Pi camera module. The daughter card connects to a Raspberry Pi computer or any Raspberry Pi camera using a 15 pin flat cable.

User Guide Schematics and BOM Digikey

Dual Raspberry Pi Camera Connector Daughter Card

Dual Raspberry Pi Camera Connector Daughter Card

Part number: EFINIX_IFB_PICAMX2

The Dual Raspberry Pi Camera Connector Daughter Card bridges between the development board and two Raspberry Pi v2 camera modules. You can connect two Raspberry Pi cameras using the 15-pin flat cable to headers.

User Guide Schematics and BOM Digikey

FMC DDR3 and GPIO Daughter Card

FMC DDR3 and GPIO Daughter Card

Part number: EFX_FMC_DDR3_GPIO

The FMC DDR3 and GPIO Daughter Card has a 8 Gb DDR DRAM module and also includes an additional QSE connector and a 10-pin header for GPIO connections.

User Guide Schematics and BOM Digikey

FMC-to-QSE Adapter Card

FMC-to-QSE Adapter Card

Part number: EFX_GPIO_FL_DC_C

The FMC-to-QSE Adapter Card adds three additional multi-purpose QSE connectors to the supported development board. The adapter card connects to the development board using the FPGA mezzanine card (FMC) with low pin-count connector (LPC).

User Guide Schematics and BOM

Coral Camera Connector Daughter Card

Coral Camera Connector Daughter Card

Part number: EFX_CSI2-CAM-CORAL_DC

The Coral Camera Connector Daughter Card bridges between Efinix development board and a Coral camera module. The daughter card connects to the camera using a 24-pin flat cable.

User Guide Schematics and BOM

Ethernet Connector Daughter Card

Ethernet Connector Daughter Card

Part number: EFX_RGMII

The Ethernet Connector Daughter Card adds Ethernet connectivity to the supported development board. The Ethernet Connector Daughter Card has a Gigabit Ethernet transceiver from Realtek which is compliant with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards.

User Guide Schematics and BOM Digikey

Firefly Compatible Camera Connector Daughter Card

Firefly Compatible Camera Connector Daughter Card

Part number: EFX_DC_CAM_DF30_BB

The FireFly Compatible Camera Connector Daughter Card works together with the Trion® T20 MIPI Development Kit. The card bridges between the development board and an OV13850 camera module that is compatible with the Firefly RK3288 or RK3399 development board.

User Guide Digikey

Leopard Imaging Camera Connector Daughter Card

Leopard Imaging Camera Connector Daughter Card

Part number: EFX_DC_CAM_MCOAX_A

The Leopard Imaging Camera Connector Daughter Card bridges between the Trion® T20 MIPI Development Board and Leopard Imaging CSI-2 camera modules. The daughter card connects to any Leopard Imaging CSI-2 camera using a 30 pin IPEX cable.

User Guide Digikey
